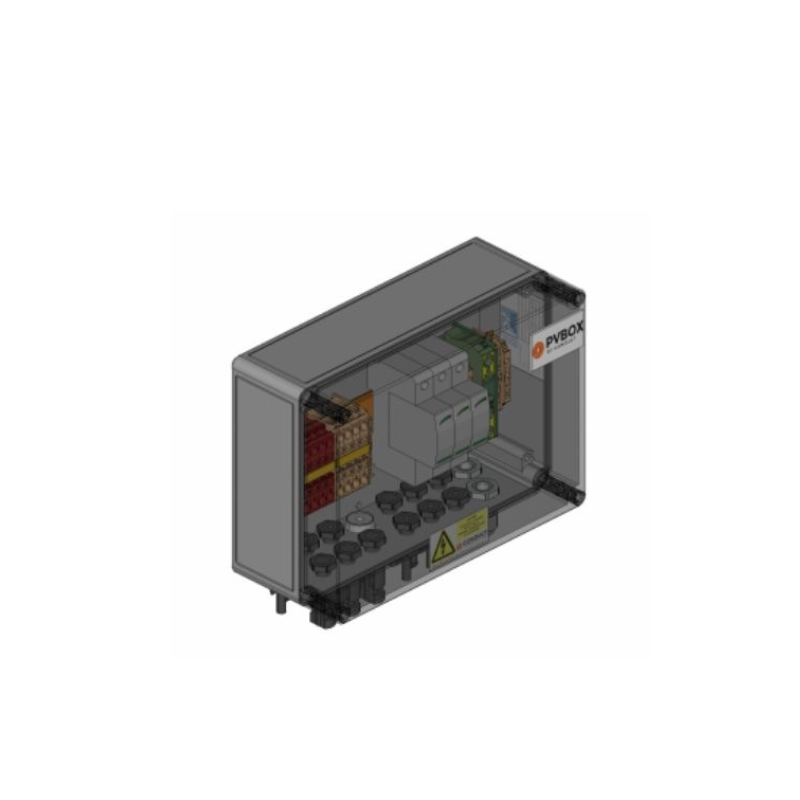

PVbox String Box to SolarEdge SE25-27.6K

PVbox String Box with SolarEdge SE25-27.6K

String box with 1+2 SPD. Applicable with SolarEdge inverters in the range SE25K to SE27.6K SE27.6K.

Ref. SE.25-27.6K.T1.3IN.3OUT.M
Type of mounting 35 mm top-hat rail
Lightning current (10/350) 5 kA
With remote signalling contact Yes
Number of conductors (without earthing) 2
Size 3 TE
Protection level 4 kV
Suitable for outdoor use Yes
Extraction mode Yes
Continuous current extinguishing capacity 20 kA
Highest DC voltage AC 0 V
Rated discharge current (8/20) 40 kA
Rated voltage AC 0 V
Rated voltage DC 1060 V
Test class type 1 Yes
Protection level L-N 0 kV
Signalling at device level Optical
Highest DC voltage 1060 V
Protection class IP65
Protection level N-PE 0 kV
Integrated auxiliary fuse No
Max. rigid conductor cross-section (single/multi-wire) 16 mm²
Max. flexible conductor cross-section (fine wire) 16 mm² (fine wire) 16 mm²
Protection level (DC+ - DC-) 4 kV
Protection level (DC+/DC- - PE) 4 kV
Network form DC Yes
Network form IT No
Network form TN No
Network form TN-C No
TN-S network form No
TT network form No
Other network form No
TN-C-S network form No
Product type 25-27.6K.T1.3IN.3OUT.M
Brand PVbox
SE Series
Made in The Netherlands
Supplier Warranty 2
