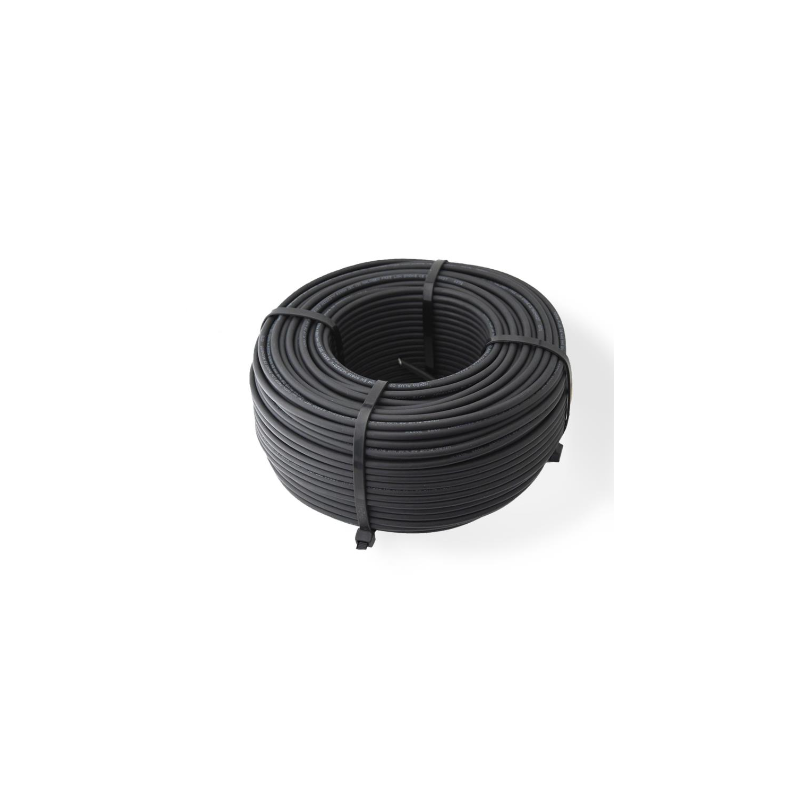

Solar cable HIKRA SOL 4mm2 Black 100m 1500V

This cable is intended for use in photovoltaic installations, e.g. in accordance with IEC 60364-7-712, and is suitable for application in/on equipment with protective insulation (protection class II). Our double-insulated solar cable HIKRA® SOL 1500V is intended for permanent use outdoors and indoors, for mobile, suspended or fixed installation. The robust materials withstand the long-term influences of nature and offer maximum quality and safety. When used correctly, this product is expected to last at least 25 years. Thanks to its good resistance to atmospheric conditions, the cable is particularly water-repellent and can be laid underground. Hikra Sol cables have the highest possible fire protection class for solar cables on the market. Please refer to our installation instructions.

UV-resistant: YesS
Nominal conductor cross-section: 4 mm²
Wire insulation: Polyolefin
Conductor marking: No
Nominal voltage U :1.5 kVCheathing colour: BlackConductor shape: Round
Conductor material: Copper
Sheathing material: Polyolefin
Conductor class: Kl.5 = fine wire
Permissible outdoor temperature of cable, moving : -25-40 °C
Rated voltage U0: 1.5 kV
Number of conductors: 1
Suitable for underground installation: Yes
Max. permissible conductor temperature: 120 °C
Approx. outer diameter: 5.4 mm
Conductor surface: Tinned
Minimum permissible bending radius, stationary/fixed use: 21.6 mm
Wire insulation specification: Other
Sheath material specification: XLPE (VPE)
Cable geometry: Round
Conductor resistance at 20 °C: 5.09 Ohm/km
Suitable as installation cable: Yes
Product type: Black 4mm2
Supplier Warranty : 2
